Description
| Parámetro | Detalle |
|---|---|

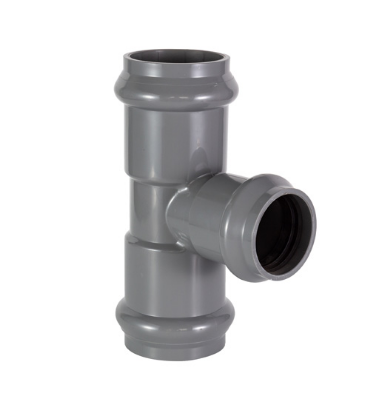

| Descripción | Tee triple de PVC para derivaciones en sistemas de tuberías (63–355 mm) |
| Material | PVC 100% virgen |
| Palabras clave | Tubería PVC, accesorios PVC, unión de goma, conector PVC 90° |
| Color | Gris, negro o azul |
| Conexión | Unión con anillo de goma / conexión elástica |
| Presión nominal | PN10, PN16 |
| Normas | BS EN ISO 1452, ISO 4422, DIN 8063, GB/T 10002.2 |
| Certificaciones | SGS, CE |
| Marca | OEM / Marca del cliente |
| Característica | Descripción |
|---|---|
| Peso ligero | Solo 1/6 del peso de tuberías de hierro fundido, fácil transporte e instalación |
| Alta resistencia | Resistencia mecánica de hasta 45 MPa |
| Baja resistencia al flujo | Superficie interior lisa, reduce pérdidas de presión hasta un 30% |
| Resistencia a la corrosión | Excelente resistencia química y electroquímica, no se oxida |
| Instalación sencilla | Conexión rápida con junta de goma, sellado seguro |
| Larga vida útil | Vida útil superior a 50 años en condiciones normales |
| Bajo costo | Costos de transporte e instalación 30–40% menores que tuberías metálicas |
| Higiénico | Apto para agua potable, sin contaminación secundaria |

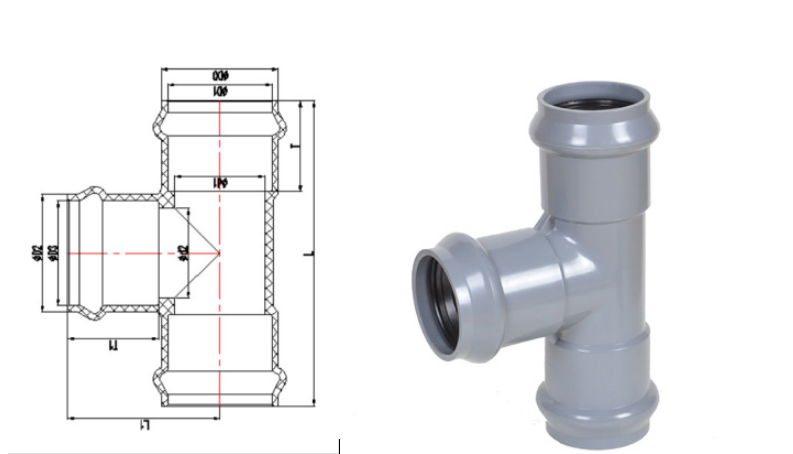

| Tamaño (mm) | D0 | D1 | D2 | D3 | d1 | d2 | T1 | T | L1 | L |
|---|---|---|---|---|---|---|---|---|---|---|
| 63 | 74.50 | 65.30 | 74.50 | 65.30 | 62.00 | 62.00 | 76.00 | 76.00 | 110.00 | 220.00 |
| 75 | 88.50 | 77.50 | 88.50 | 77.50 | 73.50 | 73.50 | 84.50 | 84.50 | 125.00 | 255.00 |
| 90 | 105.50 | 92.50 | 105.50 | 92.50 | 88.50 | 88.50 | 95.00 | 95.00 | 142.50 | 285.00 |
| 110 | 125.70 | 111.50 | 125.70 | 111.50 | 108.00 | 108.00 | 122.00 | 122.00 | 202.50 | 404.00 |
| 160 | 181.50 | 162.30 | 181.50 | 162.30 | 158.00 | 158.00 | 141.00 | 141.00 | 236.50 | 470.00 |
| 200 | 225.00 | 202.50 | 225.00 | 202.50 | 197.00 | 197.00 | 152.00 | 152.00 | 270.00 | 555.00 |
| 225 | 251.50 | 227.50 | 251.50 | 227.50 | 221.00 | 221.00 | 139.00 | 139.00 | 288.00 | 592.00 |
| 250 | 276.50 | 252.30 | 276.50 | 252.30 | 247.00 | 247.00 | 152.00 | 152.00 | 312.00 | 640.00 |
| 315 | 347.80 | 318.30 | 347.80 | 318.30 | 312.00 | 312.00 | 198.00 | 198.00 | 393.00 | 786.00 |
| 355 | 389.00 | 318.30 | 389.00 | 318.30 | 326.00 | 326.00 | 198.00 | 198.00 | 410.00 | 820.00 |
| Tamaño (mm) | D0 | D1 | D2 | D3 | d1 | d2 | T1 | T | L1 | L |
|---|---|---|---|---|---|---|---|---|---|---|
| 75 × 63 | 88.50 | 77.50 | 74.50 | 65.30 | 73.50 | 62.00 | 76.00 | 84.50 | 115.00 | 243.00 |
| 90 × 63 | 105.50 | 92.50 | 74.50 | 65.30 | 88.50 | 62.00 | 76.00 | 95.00 | 121.40 | 262.20 |
| 90 × 75 | 105.50 | 92.50 | 88.50 | 77.50 | 88.50 | 73.50 | 84.50 | 95.00 | 132.90 | 272.20 |
| 110 × 63 | 125.70 | 111.50 | 74.50 | 65.30 | 108.00 | 62.00 | 76.00 | 122.00 | 150.00 | 405.00 |
| 110 × 75 | 125.70 | 111.50 | 88.50 | 77.50 | 108.00 | 73.50 | 84.50 | 122.00 | 159.50 | 405.00 |
| 110 × 90 | 125.70 | 111.50 | 105.50 | 92.50 | 108.00 | 88.50 | 95.00 | 122.00 | 170.00 | 405.00 |
| 160 × 63 | 181.50 | 162.30 | 74.50 | 65.30 | 158.00 | 62.00 | 76.00 | 141.00 | 175.00 | 446.00 |
| 160 × 75 | 181.50 | 162.30 | 88.50 | 77.50 | 158.00 | 73.50 | 84.50 | 141.00 | 185.00 | 446.00 |
| 160 × 90 | 181.50 | 162.30 | 105.50 | 92.50 | 158.00 | 88.50 | 95.00 | 141.00 | 195.00 | 446.00 |
| 160 × 110 | 181.50 | 162.30 | 125.70 | 111.50 | 158.00 | 108.00 | 122.00 | 141.00 | 220.00 | 446.00 |
| 200 × 63 | 225.00 | 202.50 | 74.50 | 65.30 | 197.00 | 62.00 | 76.00 | 152.00 | 195.00 | 490.00 |
| 200 × 75 | 225.00 | 202.50 | 88.50 | 77.50 | 197.00 | 73.50 | 84.50 | 152.00 | 205.00 | 490.00 |
| 200 × 90 | 225.00 | 202.50 | 105.50 | 92.50 | 197.00 | 88.50 | 95.00 | 152.00 | 215.00 | 490.00 |
| 200 × 110 | 225.00 | 202.50 | 125.70 | 111.50 | 197.00 | 108.00 | 122.00 | 152.00 | 240.00 | 490.00 |
| 200 × 160 | 225.00 | 202.50 | 182.00 | 162.30 | 197.00 | 158.00 | 141.00 | 152.00 | 250.00 | 500.00 |
| 225 × 110 | 251.50 | 227.50 | 125.70 | 111.50 | 221.00 | 108.00 | 122.00 | 139.00 | 263.00 | 466.00 |
| 225 × 160 | 251.50 | 227.50 | 182.00 | 162.30 | 221.00 | 158.00 | 141.00 | 139.00 | 290.00 | 504.00 |
| 250 × 110 | 276.50 | 252.30 | 125.70 | 111.50 | 247.00 | 108.00 | 122.00 | 152.00 | 275.00 | 500.00 |
| 250 × 160 | 276.50 | 252.30 | 182.00 | 162.30 | 247.00 | 158.00 | 141.00 | 152.00 | 302.00 | 638.00 |
| 250 × 200 | 276.50 | 252.30 | 225.00 | 202.50 | 247.00 | 197.00 | 152.00 | 152.00 | 310.00 | 578.00 |
| 250 × 225 | 276.50 | 252.30 | 251.50 | 227.50 | 226.00 | 216.00 | 150.00 | 152.00 | 315.00 | 626.00 |
| 315 × 110 | 347.80 | 318.30 | 125.70 | 111.50 | 312.00 | 108.00 | 122.00 | 198.00 | 317.00 | 592.00 |
| 315 × 160 | 347.80 | 318.30 | 182.00 | 162.30 | 312.00 | 158.00 | 141.00 | 198.00 | 336.50 | 626.00 |
| 315 × 200 | 347.80 | 318.30 | 225.00 | 202.50 | 312.00 | 197.00 | 152.00 | 198.00 | 347.00 | 660.00 |
| 315 × 225 | 347.80 | 318.30 | 251.50 | 227.50 | 312.00 | 221.00 | 139.00 | 198.00 | 340.00 | 735.00 |
| 315 × 250 | 347.80 | 318.30 | 276.50 | 252.30 | 312.00 | 247.00 | 152.00 | 198.00 | 347.00 | 735.00 |
| 355 × 110 | 389.00 | 318.30 | 125.70 | 111.50 | 326.00 | 108.00 | 122.00 | 198.00 | 322.50 | 635.00 |
| 355 × 160 | 389.00 | 318.30 | 182.00 | 162.30 | 326.00 | 158.00 | 141.00 | 198.00 | 347.50 | 635.00 |
| 355 × 200 | 389.00 | 318.30 | 225.00 | 202.50 | 326.00 | 197.00 | 152.00 | 198.00 | 360.00 | 730.00 |
| 355 × 225 | 389.00 | 318.30 | 251.50 | 227.50 | 326.00 | 221.00 | 139.00 | 198.00 | 354.00 | 730.00 |
| 355 × 250 | 389.00 | 318.30 | 276.50 | 252.30 | 326.00 | 247.00 | 152.00 | 198.00 | 369.00 | 730.00 |
| 355 × 315 | 389.00 | 318.30 | 347.80 | 318.30 | 326.00 | 312.00 | 198.00 | 198.00 | 418.00 | 820.00 |
